RZ0250

52 × 50 × 35 mm

Material: Polycarbonate

Category: All Products, General Purpose Plastic

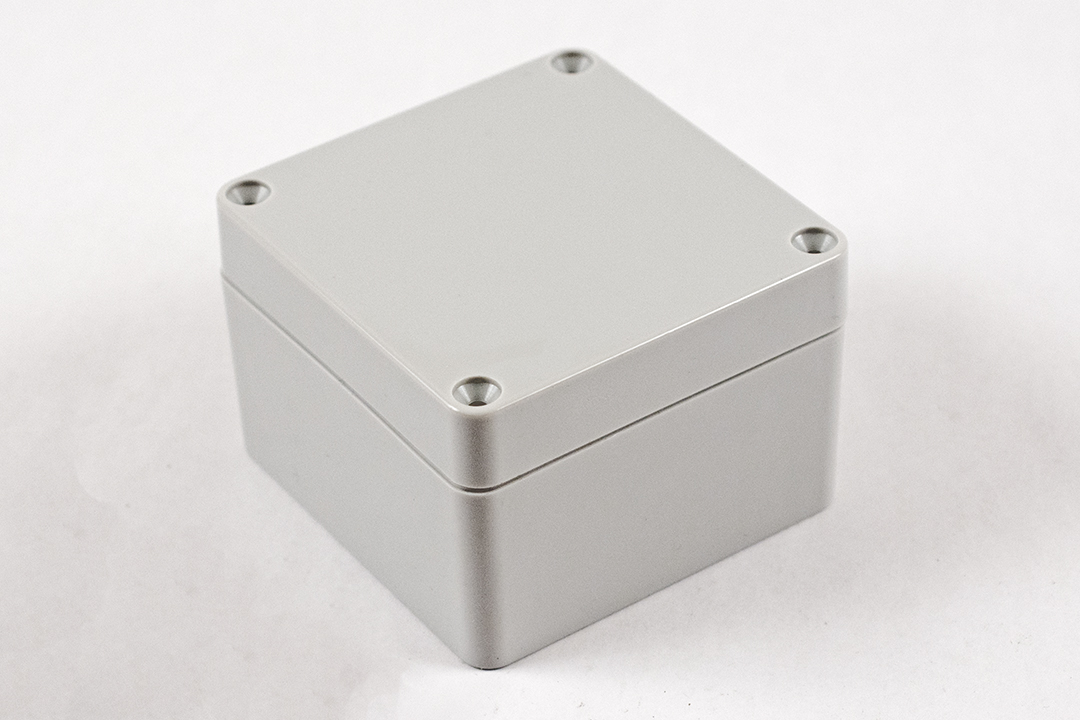

RZ Series Ritec Enclosure, Polycarbonate
£4.83

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Designed to meet IP65.
  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water
  • Lid screws are self-captivating (lid holes are threaded with first installation of screws).
  • All sizes are available with clear polycarbonate lid (part numbers ending in “C”)
  • Easy to Wall Mount using “through box-blind hole construction” whereby the Wall Mounting holes are outside the gasket perimeter.

ABS Plastic Specifications:

  • Suggested for indoor use
  • UL Flammability rating of UL94-HB
  • colour: RAL1013
  • Temperature: -30 degrees C to +80 degrees C.

Polycarbonate Specifications

  • Suggested for outdoor use
  • UL Flammability rating of UL94-V2
  • colour: RAL7035
  • Temperature: -40 degrees C to +130 degrees C.

Available In Four Styles:

  • Beige ABS plastic
  • Beige ABS plastic with clear polycarbonate lid
  • Light grey polycarbonate
  • Light grey polycarbonate with clear polycarbonate lid
Enclosure is assembled with corrosion resistant hardware.? Wall Mounting holes are outside the gasket’s perimeter.
Internal mounting points designed for printed circuit boards or DIN rail

Technical

Dimensions 52 × 50 × 35 mm
Colour

Grey

Height

35

Width

50

Length

52

IP Rating

IP65

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-V2

Shape

Rectangular/Square

Mounting

Free Standing, Wall Mount

Feature

N/A

Series

RZ

Downloads

RZ0250-2

538.66 KB
