RZ0256C

82 × 80 × 55 mm

Material: Polycarbonate

Category: All Products, General Purpose Plastic

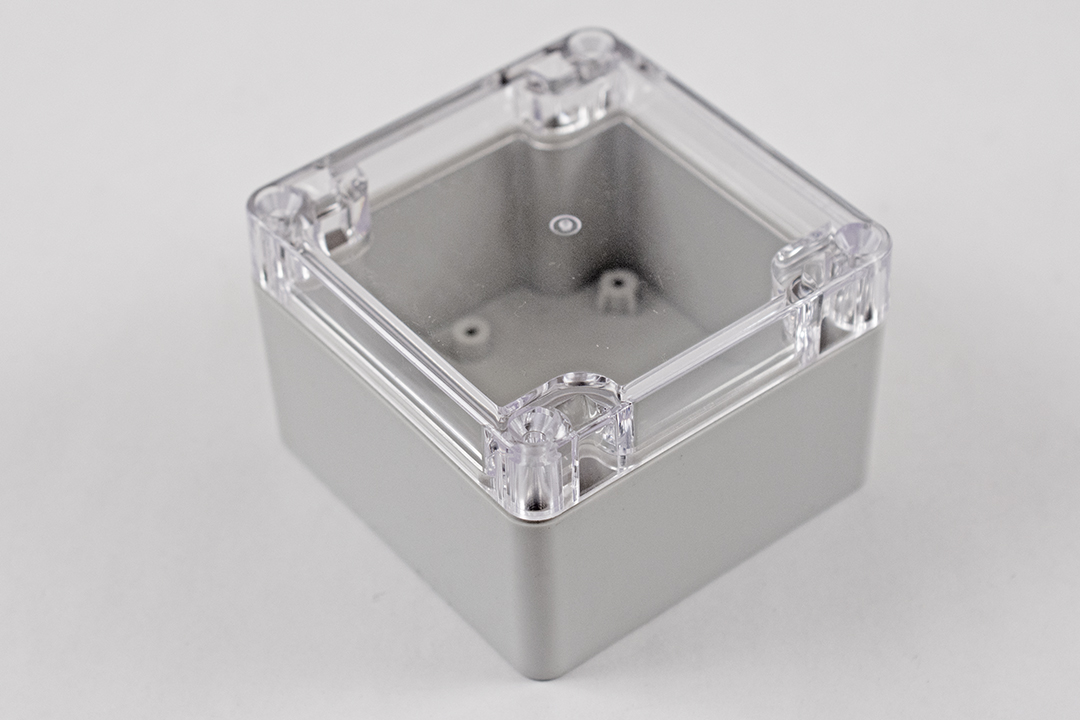

RZ Series Ritec Enclosure, Polycarbonate, Clear Lid
£9.51
Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Designed to meet IP65.
  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water
  • Lid screws are self-captivating (lid holes are threaded with first installation of screws).
  • All sizes are available with clear polycarbonate lid (part numbers ending in “C”)
  • Easy to Wall Mount using “through box-blind hole construction” whereby the Wall Mounting holes are outside the gasket perimeter.

ABS Plastic Specifications:

  • Suggested for indoor use
  • UL Flammability rating of UL94-HB
  • colour: RAL1013
  • Temperature: -30 degrees C to +80 degrees C.

Polycarbonate Specifications:

  • Suggested for outdoor use
  • UL Flammability rating of UL94-V2
  • colour: RAL7035
  • Temperature: -40 degrees C to +130 degrees C.
Enclosure is assembled with corrosion resistant hardware.? Wall Mounting holes are outside the gasket’s perimeter.
Internal mounting points designed for printed circuit boards or DIN rail

Technical

Dimensions 82 × 80 × 55 mm
Colour

Grey

Height

55

Width

80

Length

82

IP Rating

IP65

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-V2

Shape

Rectangular/Square

Mounting

Free Standing, Wall Mount

Feature

Clear Lid

Series

RZ

Downloads

RZ0256C-4

575.74 KB
