MBPO 181170

188 × 110 × 70 mm

Material: Polystyrene

Category: All Products, General Purpose Plastic

Electronic-Enclosures MBPO
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

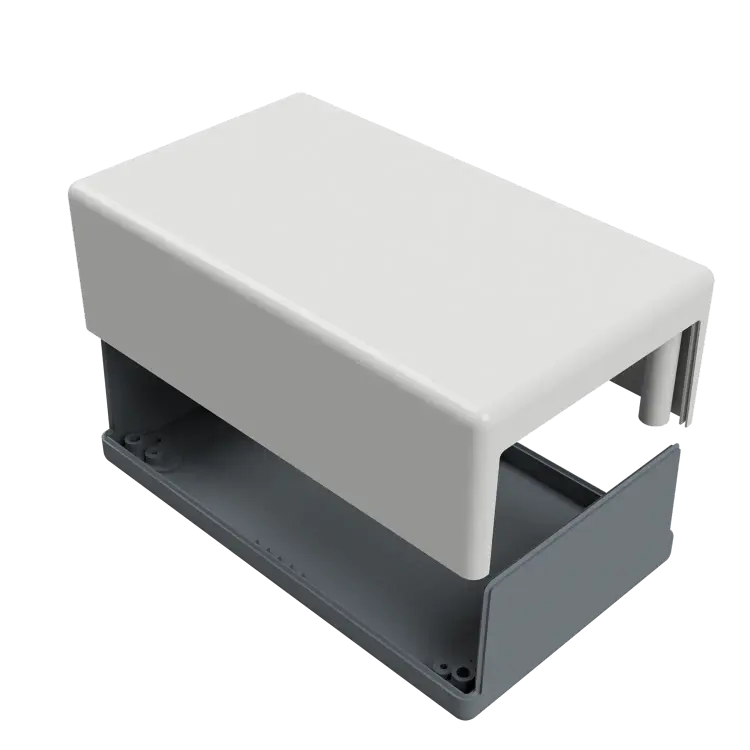

MBPO 181170

Electronic-Enclosures MBPO in a shapely design are made of impact resistant Polystyrene and are particularly suited to the installation of small controls and desk units.

Excellent stability is achieved with the groove and spring sealing and the base parts that open to the side allowing fast and uncomplicated assembly of construction elements.

The cover is invisibly screwed on from the underside in the standard version. Fixing from the top side of the cover is also possible as an alternative.

  • RAL-code cover: 7035
  • RAL-code base: 7016
  • Material cover: Polystyrene
  • Material base: Polystyrene
  • Permanent operating temperature max. (?C): 60
  • Permanent operating temperature min. (?C): -20
  • Suitable for indoor use
  • Protection class IP : 20
  • Special colours

Technical

Dimensions 188 × 110 × 70 mm
Colour

Grey

Height

70

Width

110

Length

188

IP Rating

IP20

Manufacturer

Multi-Box

Material

Polystyrene

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Series

MBPO
